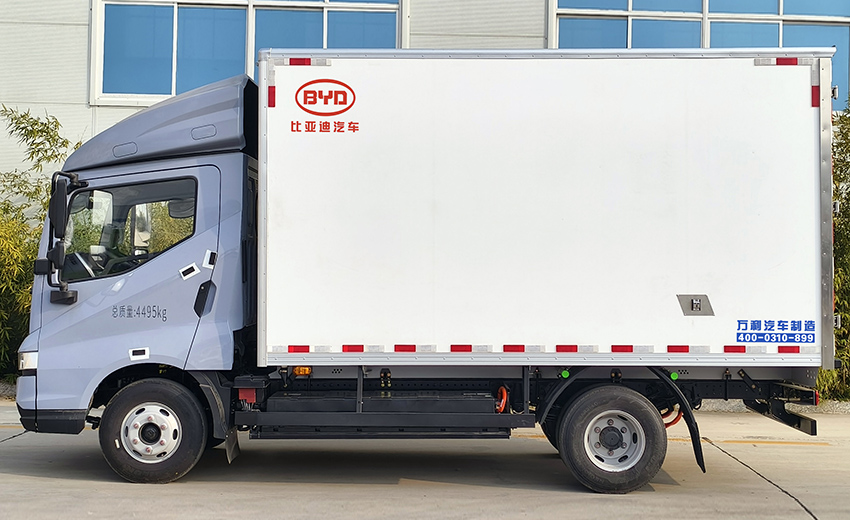

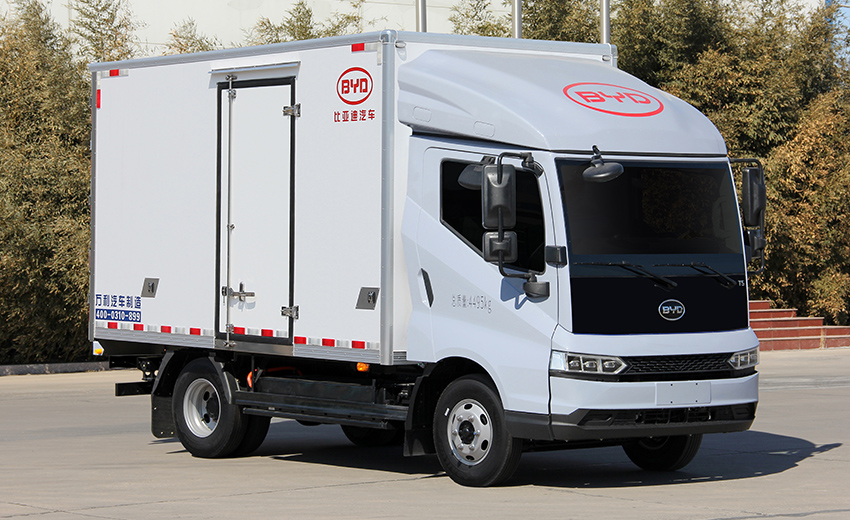

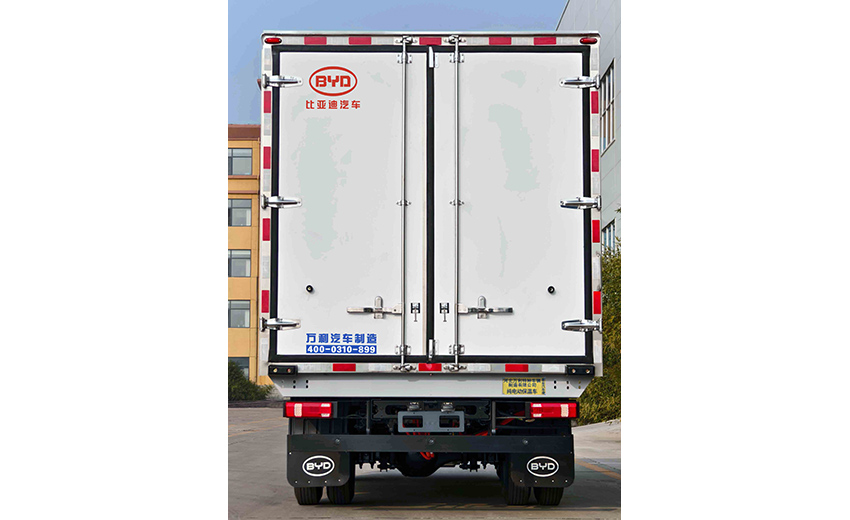

4.5-ton Insulated Truck
It is applicable to urban distribution, fresh food cold chain, vaccine transportation and other fields, meeting the requirements of green logistics and efficient operation.
+86 (0)3102856688
Product Introduction

  It is specially designed for demanding scenarios such as cold chain logistics, medical supplies transportation and food distribution, featuring zero emissions, low energy consumption and long battery life. The vehicle is equipped with high-performance lithium iron phosphate blade batteries and an intelligent temperature control system, which enables precise temperature regulation between -20℃ and +25℃ for cargo. It is applicable to urban distribution, fresh food cold chain, vaccine transportation and other fields, meeting the requirements of green logistics and efficient operation.

Product Advantages

  Eco-friendly Economy: Zero emissions, power consumption per 100 kilometers ≤ 35kWh, and the operating cost is only one-third of that of fuel vehicles.

  Efficient and reliable: The motor features stepless speed regulation with quick power response, ideal for frequent starts and stops in urban driving.

  Intelligent temperature control: The temperature inside the cargo compartment fluctuates slightly, and independent control of multiple temperature zones is supported.

Technical Parameters
Item Parameter Parameter
Announcement Number by MIIT Wanli’s Vehicle Announcement Number by MIIT HWL5040XBWHEV (Plug-in Range-Extended Hybrid Insulated Truck) HWL5040XBWBEV (Battery Electric Insulated Truck)
Chassis Announcement Number by MIIT BYD1040A3HEV4C1 BYD1040A3BEVC1
Fuel Type Gasoline / Electric Hybrid Pure Electric
Mass Parameters Maximum Total Mass (kg) 4495 4495
Curb Weight (kg) 3130 3325
Rated Payload Mass (kg) 1235, 1170 1040, 975
Dimension Parameters Overall Vehicle Dimension (mm) 5995 × 2260 × 3370 5995 × 2260 × 3370
Wheelbase (mm) 3360 3360
Power Battery Battery Type Lithium Iron Phosphate Lithium Iron Phosphate
Battery Capacity (kWh) 55.39 131.98
Constant-Speed Driving Range (km) 230 710
Electric Motor Model TZ200XSY TZ200XSAX
Motor Type Permanent Magnet Synchronous Motor(PMSM)

Permanent Magnet Synchronous Motor(PMSM)
Cargo Box Internal Dimension (mm) 4200 × 2100 × 2310 4200 × 2100 × 2310
Effective Volume (m³) 20.37 20.37
