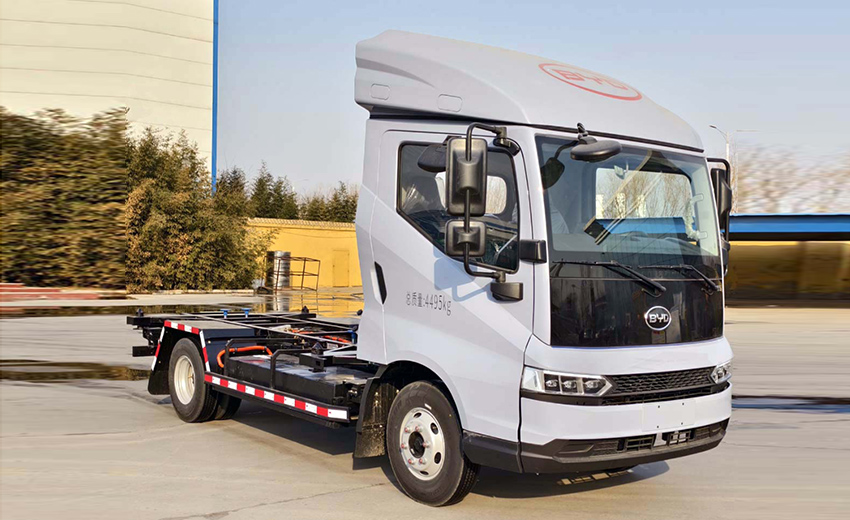

4.5-ton Detachable Container Truck
The constant-speed cruising range reaches 230 km under pure electric mode. The overall driving range is greatly improved in range-extended mode, eliminating range anxiety and making the vehicle suitable for medium and long-distance transportation.
+86 (0)3102856688
Product Introduction

  The detachable container truck is modified based on BYD truck chassis, integratingthe latest electric technologies and intelligent designs, and is built to meet diverse transportation demands.

Product Advantages

  Adopt the latest electric technology and intelligent design to enhance overall vehicle performance and handling experience. In light of the characteristics of dedicated electric vehicles, rematch the load-bearing capacity of front and rear axles, braking system, steering system and other components.

  Low noise and ultra-long battery life to meet the demands of long-hour operation and reduce charging frequency.

  It adopts a permanent magnet synchronous motor with a torque of 340 N·m to deliver abundant power performance.

  High-voltage components such as batteries, electric drive motors and controllers all adopt IP67 or IP68 protection ratings to ensure vehicle safety.

  Equipped with anti-lock braking system (ABS) to improve driving safety.

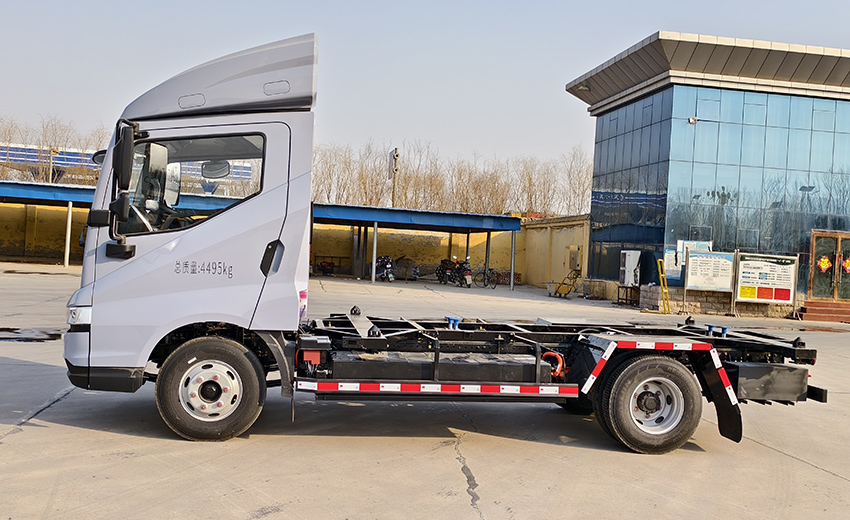

  Detachable carriage design: The carriage can be quickly separated from the chassis, enabling convenient loading and unloading of enclosed special cargo boxes and improving loading and unloading efficiency.

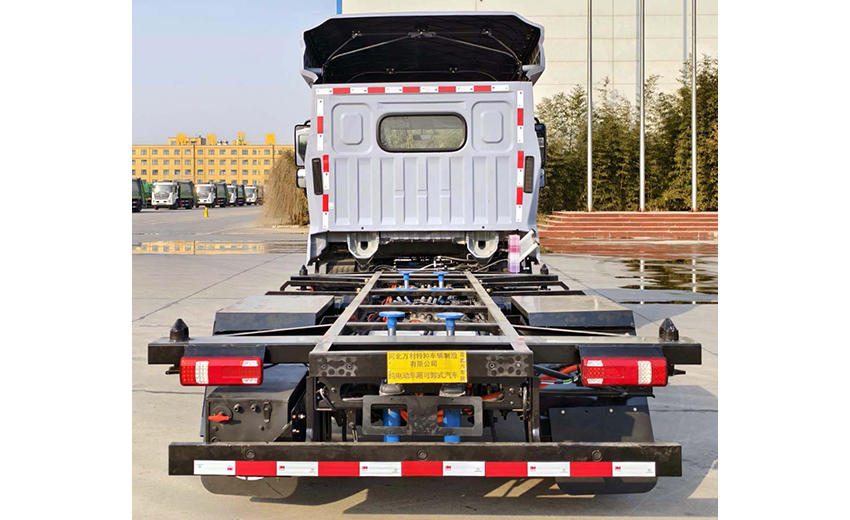

  The chassis boasts strong load-bearing capacity, meeting the demand for heavy superstructures on special vehicles.

Technical Parameters
Item Parameter Parameter
Announcement Number by MIIT Wanli’s Vehicle Announcement Number by MIIT HWL5040ZKXHEV (Plug-in Range-Extended Hybrid) HWL5040ZKXBEV (Battery Electric)
Chassis Announcement Number by MIIT BYD1040A3HEV4C1 BYD1040A3BEVC1
Fuel Type Gasoline / Electric Hybrid Pure Electric
Mass Parameters Maximum Gross Mass (kg) 4495 4495
Curb Weight (kg) 2960 3170
Rated Payload Mass (kg) 1405, 1340 1195, 1130
Dimension Parameters Wheelbase (mm) 3360 3360
Overall Vehicle Dimension (mm) 5995 × 2100 × 2465, 2900, 3050 5995 × 2100 × 3050, 2900, 2465
Power Battery Battery Type Lithium Iron Phosphate Lithium Iron Phosphate
Battery Capacity (kWh) 55.39 131.98
Nominal Voltage (V) 355 537.6
Electric Drive Motor Model TZ200XSY TZ200XSAX
Motor Type Permanent Magnet Synchronous Motor(PMSM) Permanent Magnet Synchronous Motor(PMSM)
Other Performance Parameters Maximum Speed (km/h) 100 90
Constant-Speed Driving Range (km) 230+750 710
