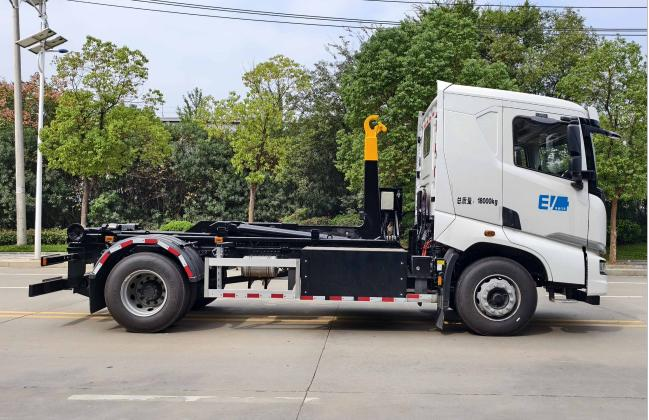

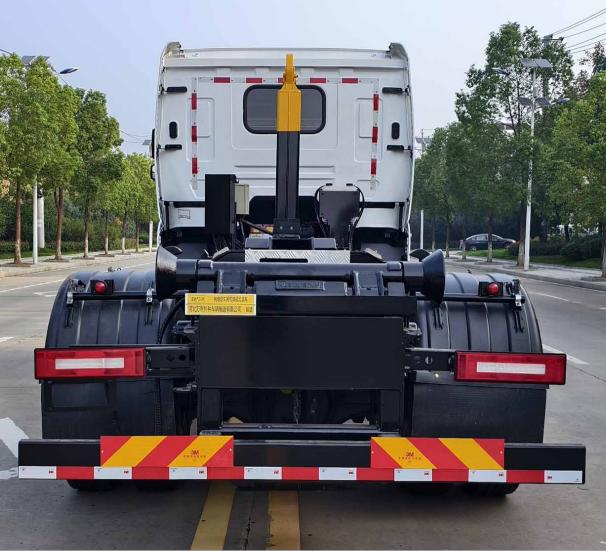

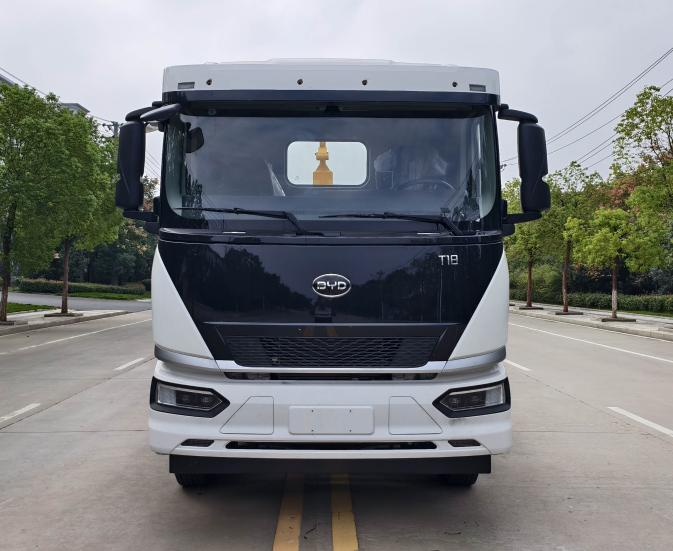

The vehicle adopts a modular design of “chassis + detachable cargo box”, integrating garbage loading, transfer and unloading into one unit. Boasting advantages of zero emissions, low noise, high efficiency and convenience, as well as low operating costs, it is widely used in the collection and transportation of domestic waste, kitchen waste and construction waste in various scenarios such as urban communities, industrial parks, town streets, schools and hospitals. It serves as the optimal equipment to support the "Dual Carbon"goals and advance the intelligent upgrading of environmental sanitation services.
Equipped with a detachable compartment structure, it achieves efficient unloading by docking with garbage transfer stations, greatly improving garbage transfer efficiency and operational convenience.
High Protection Grade: The protection grade of batteries, drive motors, controllers, wiring harnesses and other components reaches IP67 to guarantee vehicle safety.
High Intelligence Level: Equipped with a central control screen and adopts CAN bus technology to control actuators.
Excellent Sealing Performance: The cargo box adopts a fully sealed design with a hydraulic locking mechanism to prevent leakage of materials, liquid and gas.
Unloading Method: Materials are unloaded via cargo box lifting.
Feeding Method: Materials are loaded by a pull-arm mechanism.
Pure electric drive with zero pollution and low noise.
| Item | Parameter | |
| Announcement Number by MIIT | Wanli’s Vehicle Announcement Number by MIIT | HWL5181ZXXBEV |
| Chassis Announcement Number by MIIT | BYD1180C2BEVC2 | |
| Mass Parameters | Gross Vehicle Mass (kg) | 18000 |
| Curb Mass(kg) | 9200 | |
| Rated Payload Mass(kg) | 8670 | |
| Dimension Parameters | Overall Vehicle Dimension(mm) | 7620 × 2530 × 3280 |
| Wheelbase(mm) | 4500 | |
| Power Battery Parameters | Battery Type | Lithium Iron Phosphate |
| Battery Capacity(kWh) | 172.108, 203.98 | |
| Nominal Voltage(V) | 518.4, 614.4 | |
| Vehicle Performance Parameters | Constant-Speed Driving Range(km) | 265, 315 |
| Drive Motor Parameters | Manufacturer / Model | BYD Auto Industry Co., Ltd. / TZ370XSA |
| Motor Type | Permanent Magnet Synchronous Motor | |
| Superstructure Operation Parameters | Dumping Angle(°) | ≥ 43 |
| Container Loading Operation Time(s) | ≤ 60 | |
| Container Unloading Operation Time(s) | ≤ 60 | |
| Dumping Operation Time(s) | ≤ 60 | |
| Superstructure Configuration Description | Consists of hook arm frame, hydraulic oil cylinders, and hydraulic pump station. Equipped with double-acting hydraulic oil cylinders, matched with hydraulic locks and balance valves, including high-pressure hydraulic pump, stainless steel hydraulic pipelines, electric control valve group, and hydraulic oil cooling device. Auxiliary operation components include high-pressure cleaning hose reel, bilateral linked container locking device, operation warning lights, etc. | |
